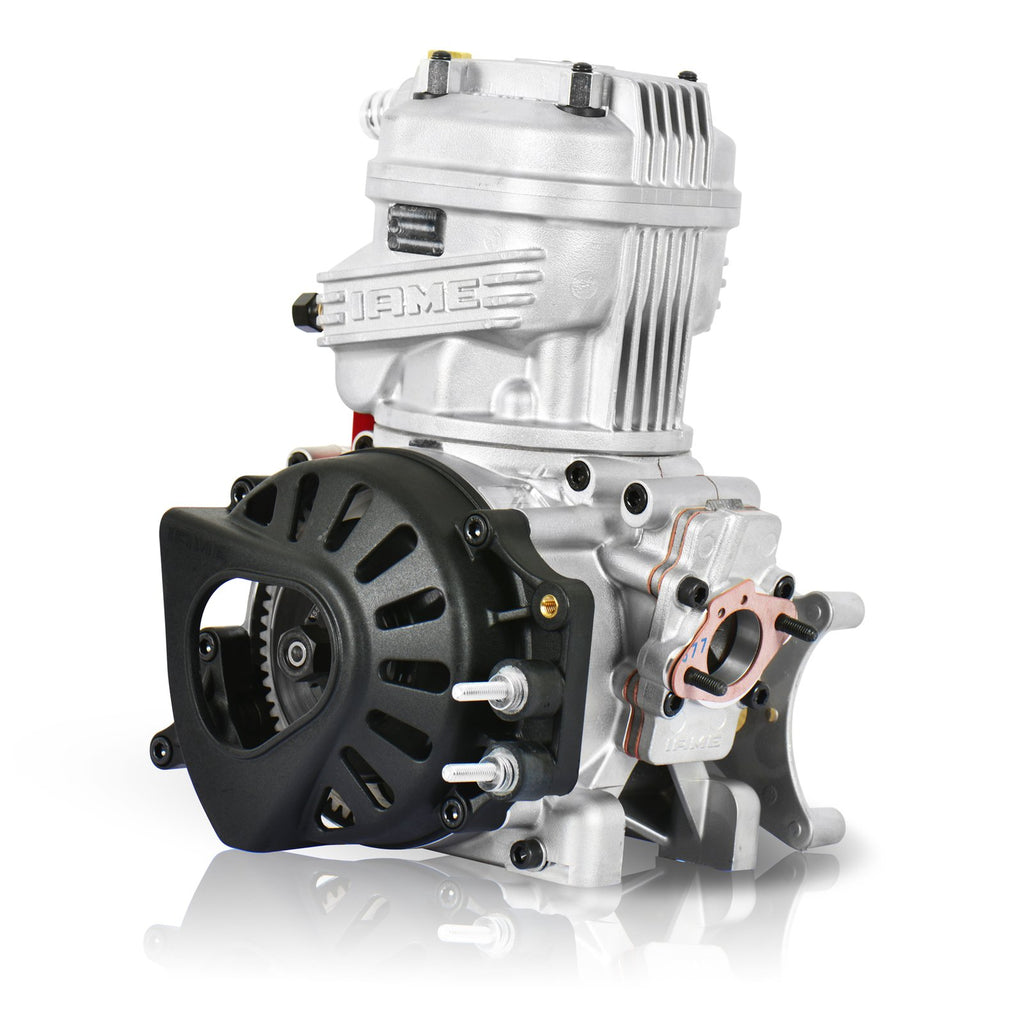

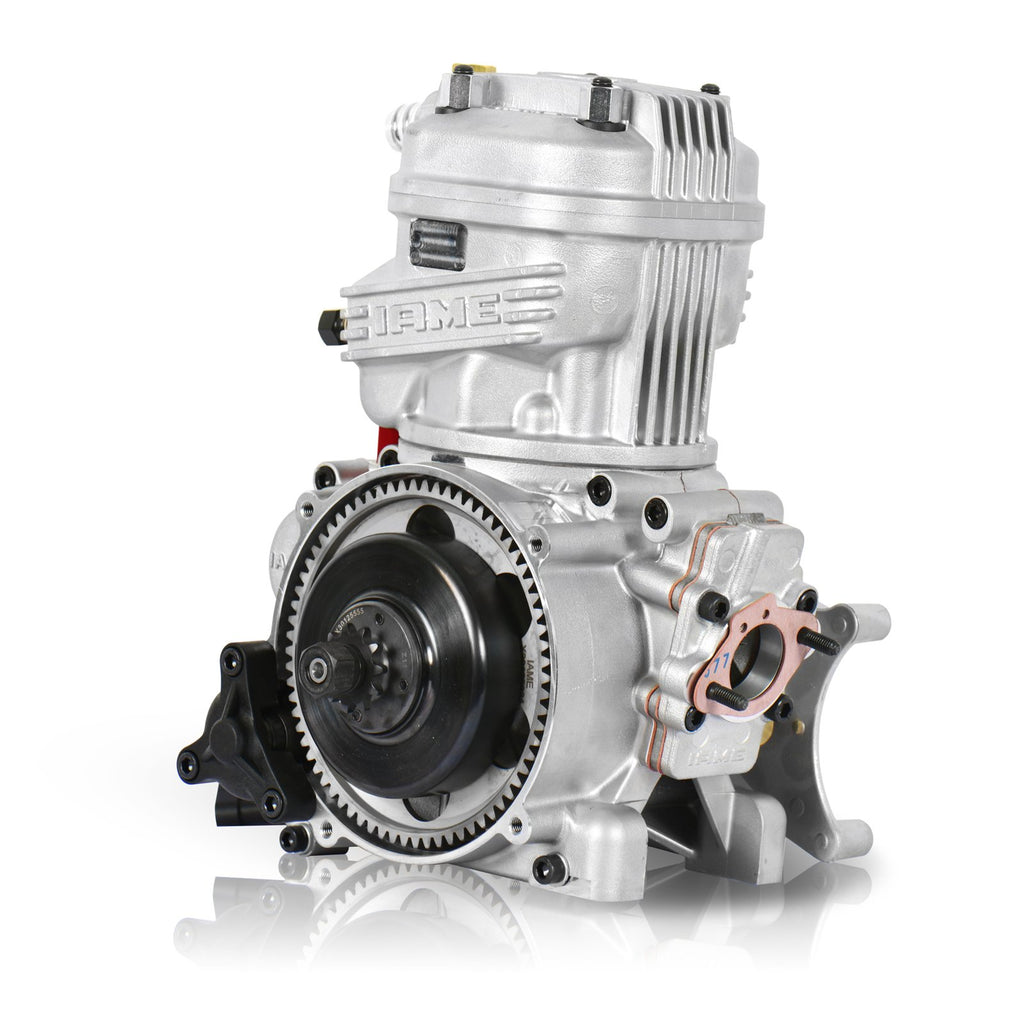

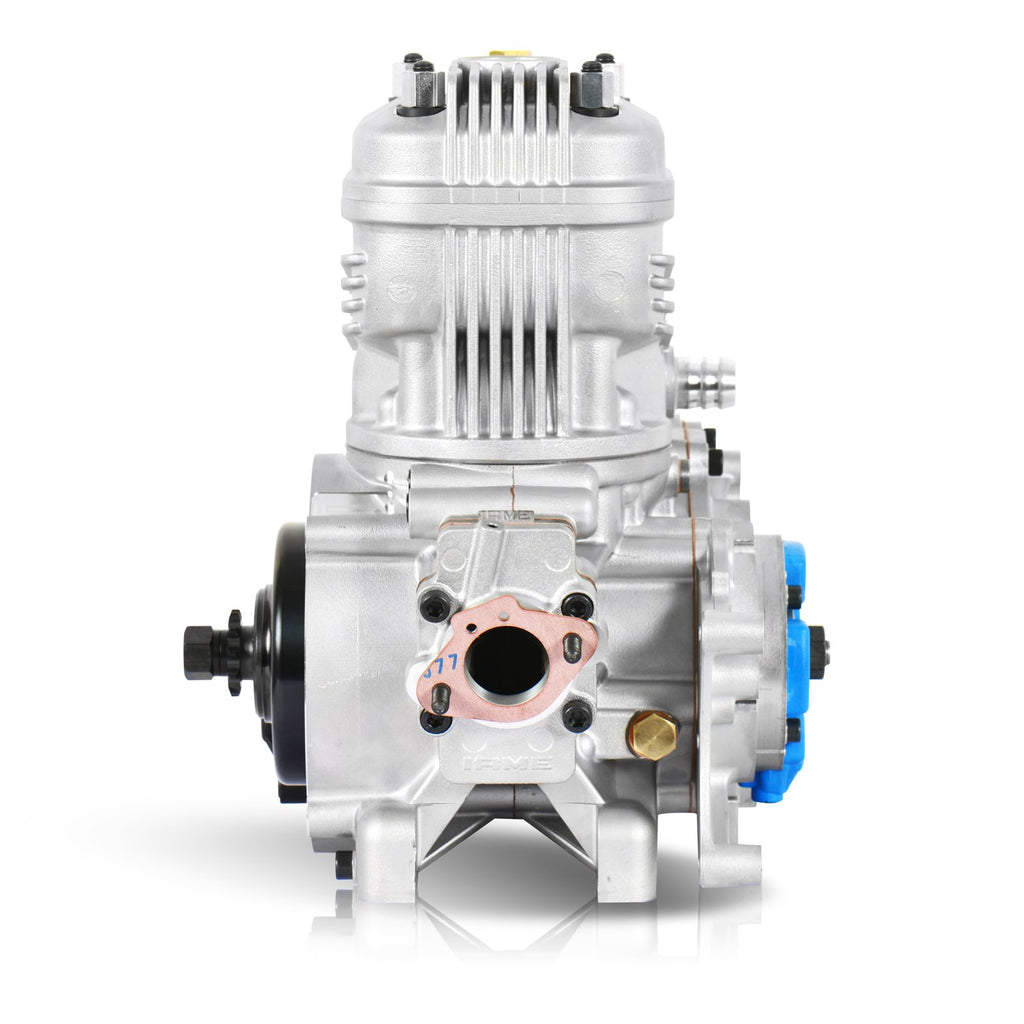

X30 125cc TAG Engine Package



The best selling X30 is the most successful blend of innovation and tradition. Offering modern features such as an electric starter, balancer shaft and water-cooling, while preserving traditional specifications that include the diaphragm carburetor and the absence of the power valve. The result: an engine that is fun to drive, easy to use and long lasting. Pure karting!


  • Model: 30 125cc Junior – Spec- UK/USA
  • Description: Single cylinder – 2 stroke
  • Class: 125cc Stock Class
  • Bore: Ø 54,00mm
  • Max-Bore: Ø 54,28mm
  • Stroke: 54,00mm
  • Displacement: 123,67cc
  • Ports: 3
  • Inlet-System: Reed Valve
  • Lubrication: Oil mixture
  • Ignition-System: Digital
  • Transmission: Centrifugal Dry Clutch
  • Cooling-System: Water
  • Balancer-Shaft: Present
  • Starter: Electric
  • Carb-Model: Tillotson HW-27A
  • Max-Power: 21 Hp
  • Max-Torque: 11 Nm
  • Max-RPM-Limit: 16.000 RP

X-30 Engine Kit Includes - Large Aluminum Radiator, Water Lines, Water Pump, Simpler Wiring Harness, Clutch, Carburetor, Header, One Piece Exhaust Pipe, Exhaust Pipe Springs, Airbox with Inner Foam Filter, Inline Water Thermostat, Water Pump, Water Pump Belts, Water Pump Pulley, Battery Support Box, Battery Not Included

**Updated Engine and Kit for 2021! Includes new simpler ignition and starter system, new one piece pipe with no flex adjustment, roller main bearings**

Manual X30 Engine
